NEW! Tenda W312A Wireless Access Point - Wall Jack - Poe - 300Mbps W/Usb Charge
Description

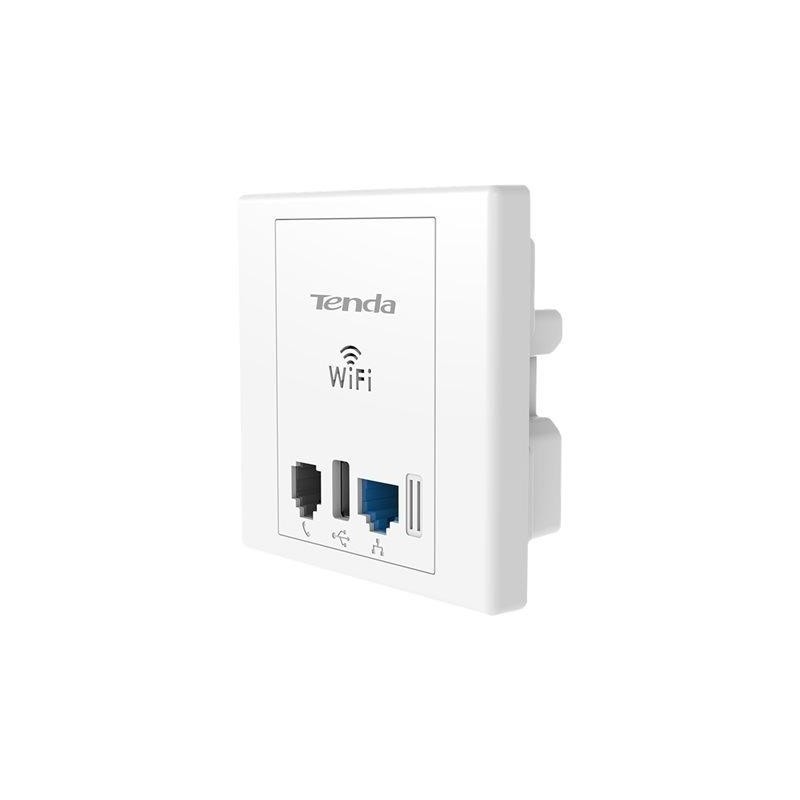

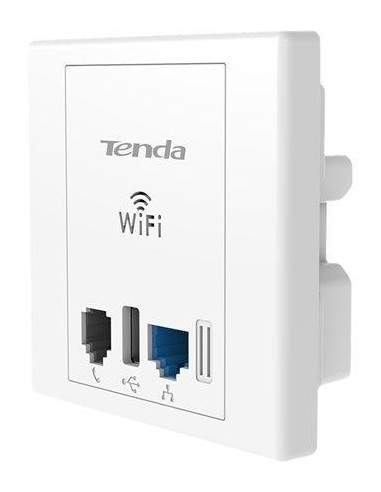

Wireless N300 Wall Plate Access Point
W312A is the latest generation wall plate Wi-Fi access point (AP) which can be installed in any 86mm wall plate without breaking the existing decorations and is easily managed. It is well suited to university dormitories, hospital wards, hotel rooms and other sites with densely divided rooms. It helps mitigate signal quality problems caused by traditional AP deployment in such sites, and greatly reduces capital expenses and operation expenses in running these sites.
Key Features
Wireless N300 Speed
W312A transfer rates of up to 300 Mbps on the 2.4 frequency bands for faster file transfers and smoother video streaming.
Standard 86mm Panel Design
W312A uses a standard 86 x 86mm wall plate and can leverage existing 86mm network panel cover. No professional skill is needed to install the W312A. As W312A sticks to 86 x 86 standard wall plate size, it will pose no problem to neighborhood panels or other decorations, and create negligible changes to existing decorations.
Power Over Ethernet(802.3af)
The port on the back panel support Power over Ethernet (PoE) functionality, which allows both power and data to be carried over a single Ethernet cable to W312A.
USB Charger
W312A provides a 5V 500mA USB charger output port, you can use your existing USB charging cables to charge most USB powered devices like Smart Phones, MP3 Players.
Advanced Wireless Security
W312A offers multi-level wireless encryption options to prevent unauthorized access and protect your important data. 1.64/128bit WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 2.Wireless Access Control based on the mac address of wireless adapter.
SSID to VLAN tagging
W312A can be configured to broadcast up to two SSID. Each SSID can be tagged to a specified network VLAN for different user access based on established access rights.
Hardware Features
Dimensions
86*86*35mm
Weight
104.6g(173.6g include the package)
AP Type
Fat AP
Interfaces
2*FE LAN ports
1*RJ11 Telephone port
1*USBv2.0
Antennas
2*3dbi omni-directional antennas
Button
1*Reset
Power Method
802.3af PoE
Maximum Power Consumption
9W
LED
WiFi
Wireless Features
Compliant Standards IEEE 802.11n/g/b
Frequency Range 2.4GHz-2.483GHz
Maximum wireless speed 300Mbps
Maximum Transmit Power 18dbm
Wireless Basic Settings
Multiple SSID
Enable/Disable Wireless Radio
Wireless Client isolation
Wireless Access Control
Wireless Client list
SSID-to-VLAN Tagging
Wireless Security Settings
64/128 WEP
WPA-PSK
WPA2-PSK
WPA&WPA2-PSK
WPA
WPA2
Working mode AP
Maximum Concurrent Clients 12
Receiver sensitivity b mode:1M -92dBm@8% 11M -87dBm@8% PER;
g mode:54M -72dBm@8% PER;
n mode:72.2M -68dBm@8% PER; 150M -68dBm@8% PER
Modulation OFDM : BPSK@6/9Mbps-QPSK@12/18Mbps-16-QAM@24Mbps-64-QAM@48/54Mbps
DSSS : DBPSK@1Mbps-DQPSK@2Mbps-CCK@5.5/11Mbps
MIMO-OFDM : MCS 0-23
LAN Settings
Static IP
Dynamic IP
DHCP Server
DHCP Server
Clients list
VPN Pass-Through
PPTP
L2TP
Management Tool
SNMP(v1&v2c)
Reboot
System Log
Firmware update
Time&Date Setting
Backup/Restore Configuration
Username Managerment
Diagnostic Tool(ping)
Others
Package Contents
Wireless N300 Wall Plate Access Point W312A
Quick Installation Guide
Ethernet cable
Two Screws
Resource CD
Factory Default Settings
IP Address: 192.168.0.254
Login Username:admin
Login Password:admin
Certificates
FCC/CE/Rohs
Environment
Operating Temperature-10C
45C
Storage Temperature -30
70C
Operating Humidity 10%
90% non-condensing
Storage Humidity 10%
90% non-condensing
