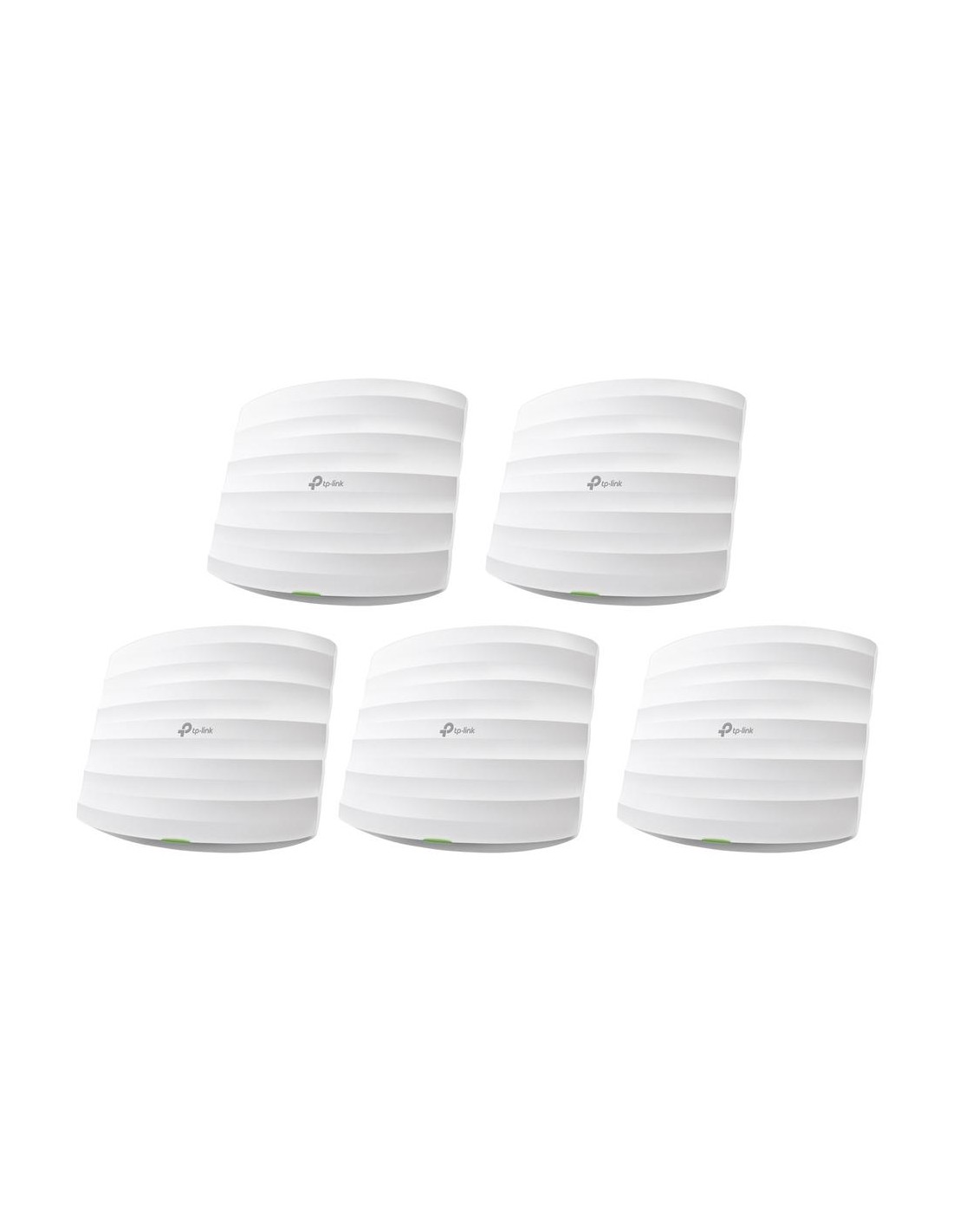

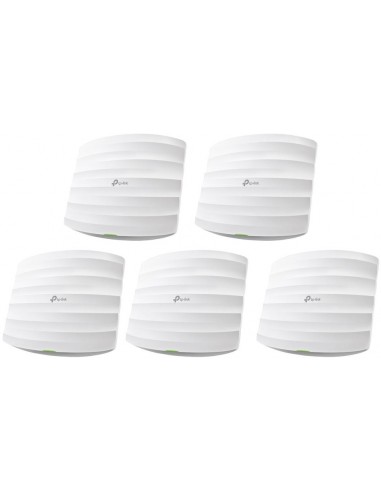

EAP245 (5 pack)
Access Point per montaggio a soffitto Gigabit dual band wireless AC1750
Wi-Fi dual-band veloce: 450 Mbps simultanei su 2,4 GHz e 1300 Mbps su 5 GHz per un totale di velocità Wi-Fi 1750 Mbps.
Integrato in Omada SDN: Zero-Touch Provisioning (ZTP)‡, gestione centralizzata del cloud e monitoraggio intelligente.
Gestione centralizzata: accesso al cloud e app Omada per un'estrema comodità e una facile gestione.
Roaming senza interruzioni: anche i flussi video e le chiamate vocali non vengono influenzati quando gli utenti si spostano da una posizione all'altra.
Supporto PoE: supporta sia lo standard 802.3af/at che il PoE passivo (adattatore PoE incluso) per installazioni flessibili.
Rete ospite sicura: insieme a molteplici opzioni di autenticazione (SMS/Facebook Wi-Fi/voucher, ecc.) e abbondanti tecnologie di sicurezza wireless.
Tecnologia wireless avanzata: ottimizza le prestazioni di rete con le tecnologie MU-MIMO, Band Steering, Airtime Fairness e Beamforming.
Caratteristiche tecniche
| HARDWARE FEATURES |
|---|
| Interface |
2 × Gigabit Ethernet (RJ-45) Ports |
|---|
| Physical Security Lock |
Yes |
|---|
| Button |
Reset |
|---|
| Power Supply |
802.3af/at PoE or
48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
|---|
| Power Consumption |
12.3 W |
|---|
| Dimensions ( W x D x H ) |
8.1 × 7.1 × 1.5 in.
(206 × 182 × 37 mm) |
|---|
| Antenna Type |
Internal Omni
2.4GHz: 3 × 4dBi
5GHz: 3 × 4dBi |
|---|
| Mounting |
Ceiling or Wall Mount
(Mounting kit included) |
|---|
| WIRELESS FEATURES |
|---|
| Wireless Standards |
IEEE 802.11ac/n/g/b/a |
|---|
| Frequency |
2.4GHz and 5GHz |
|---|
| Signal Rate |
5GHz:Up to 1300Mbps
2.4GHz:Up to 450Mbps |
|---|
| Wireless Functions |
Multiple SSIDs（Up to 16 SSIDs, 8 for each band）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
MU-MIMO (Wave 2)
Seamless Roaming
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client |
|---|
| Wireless Security |
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK |
|---|
| Transmission Power |
FCC:
≤25dBm(2.4GHz)
≤27dBm(5GHz) |
|---|
| MANAGEMENT |
|---|
| Omada App |
Yes |
|---|
| Centralized Management |
• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller |
|---|
| Cloud Access |
Yes
omada.tplinkcloud.com |
|---|
| Email Alerts |
Yes |
|---|
| LED ON/OFF Control |
Yes |
|---|
| Management MAC Access Control |
Yes |
|---|
| SNMP |
v1, v2c |
|---|
| System Logging Local/Remote Syslog |
Local/Remote Syslog |
|---|
| SSH |
Yes |
|---|
| Web-based Management |
HTTP/HTTPS |
|---|
| L3 Management |
Yes |
|---|
| Multi-site Management |
Yes |
|---|
| Management VLAN |
Yes |
|---|
| OTHERS |
|---|
| Certification |
FCC, RoHS |
|---|
| Package Contents |
AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245
Gigabit Passive PoE Adapter
Power Cord
Mounting Kit
Installation Guide |
|---|
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
|---|
